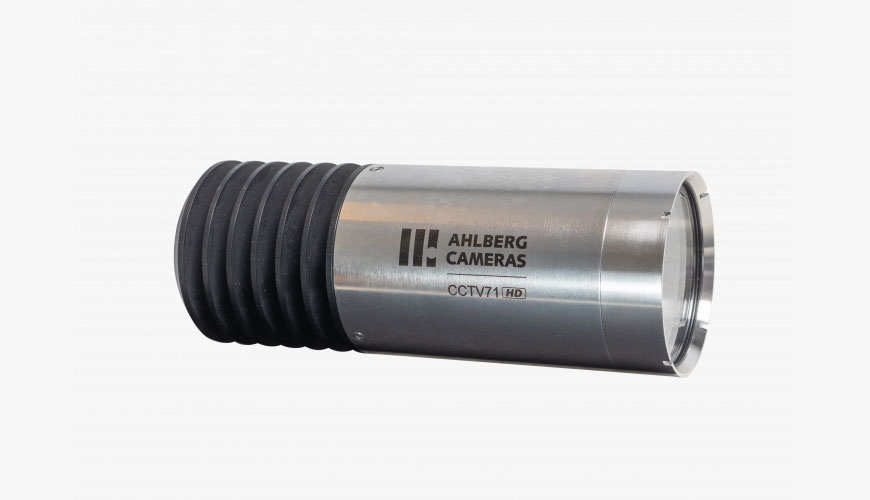

SD/HD CCTV CAMERA
The CCTV71 is designed for use in medium radiation areas. It is typically placed in fuel buildings surveying fuel storage pools. It is also used during outage service and nuclear decommissioning work.
Features
APPLICATIONS
- Designed for nuclear CCTV use in low radiation areas.
- Ideal for fuel storage pool surveillance.
BENEFITS
- Auto-focus and auto-iris
- Powerful optical zoom
- Easy maintenance
- Low light sensitivity
- Available in HD version
Specifications
| Diameter | 84 mm (3,31") |
| Length | 223 mm (8,79") |
| Weight | 3,1 kg (6,8 lbs) |
| Housing material | Stainless steel EN 1.4301 |
| Radiation tolerance (dose rate) | 500 Gy/h (50 000 rad/h) |
| Radiation tolerance (total dose) | 1 200 Gy (120 000 rad) |
| Radiation tolerance neutrons | Low |
| Maximum temperature | 45°C (113°F) |
| Protection class | IP65 |
| Zoom | x10 optical x10 digital giving x100 |
| SD horizontal angle of view | approx. 37.5° (wide end), approx. 4° (tele end) |
| HD horizontal angle of view | ~50° (wide end), ~5° (tele end) |
| Resolution SD version | 720 TV-lines |
| Resolution HD version | 720p |
