AHLBERG PIS35

Written by Thermal Systems

PORTABLE INSPECTION STATION FOR N35HR

AHLBERG PIS35

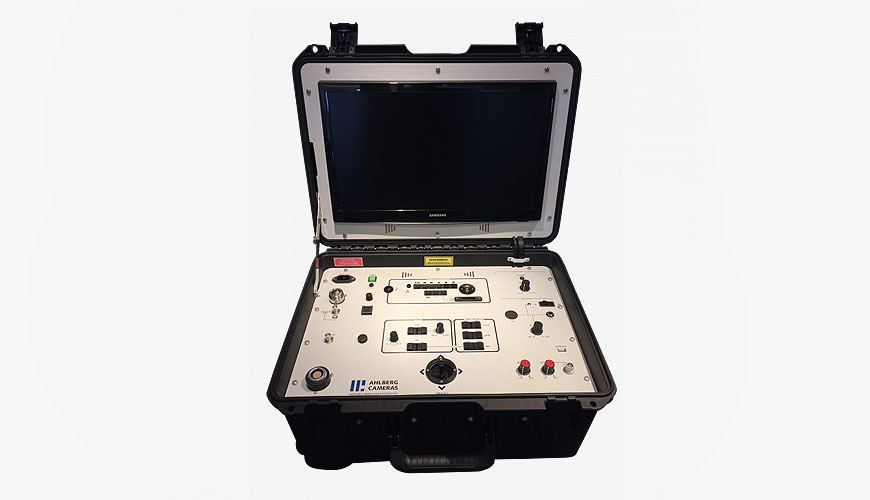

PIS35 is a portable camera control unit for the Ahlberg N35HR high radiation tolerant monochrome tube camera. Fitted in a case, it hosts the same features as the rack-mounted CCU35.


Features

APPLICATIONS

  • Portable control unit for the N35HR monochrome tube camera.

BENEFITS

  • Flexible control unit with built-in control panel and monitor
  • The case is equipped with wheels and an adjustible handle

Specifications

Dimensions (HxWxD) 300*580*400 mm (11,8"x22,8"x15,7")
Weight 18,0 kg (39,7 lbs)
Operating temperature 0°C to 50°C (32°F to 122°F)
Power supply 115-240V / 50-60 Hz
Video outputs Composite SD

DOWNLOAD PDF
