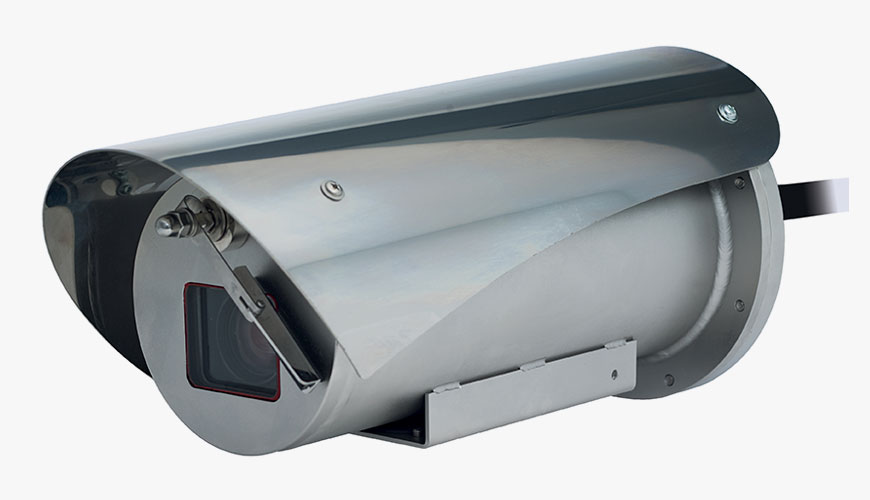

MVX CAMERA

Ex-proof FULL HD camera, for day/night viewing with exceptional night brightness.

MVX CAMERA
icons

MAXIMUS MVX with the SONY FCB-EV7520 camera has a 30x optical zoom and a 1/2.8” Exmor R™ CMOS sensor with Full HD 1080/60p resolution that produces the highest image quality, even when surveilling moving objects or in poor lighting conditions. The advanced SONY technology brings Wide Dynamic Range and a configurable High Light Compensation that allows optimal management of contrasting light and dark conditions. The camera’s high sensitivity means you get colour video with a minimum illumination of just 0.0013lx (0.0008lx in black and white). This guarantees surveillance coverage even when lighting at the scene is very poor.


Features

KEY FEATURES

  • Certifications for use in Zones 1 and 2, IIC T5 and T6 Group (Gas) and in Zones 21 and 22, IIIC T100°C and T85°C Group (Dust)
  • Marine Certification: Lloyd's Register Marine Type Approval
  • AISI 316L stainless steel construction
  • External shot peened and electro-polished surfaces
  • Camera Full HD 1080p, 30x, 60fps
  • Minimum Illumination
  • Colour: 0.006lx
  • B/W: 0.0006lx
  • 4m (13ft) / 10m (32.8ft) preinstalled armoured multipolar cable with cable gland or, alternatively, with 4m (13ft) / 10m (32.8ft) cable tail (for installation with conduit, conduit sealing fitting and conduit not included)

Specifications

DOWNLOAD PDF
