HD ZOOM CAMERA

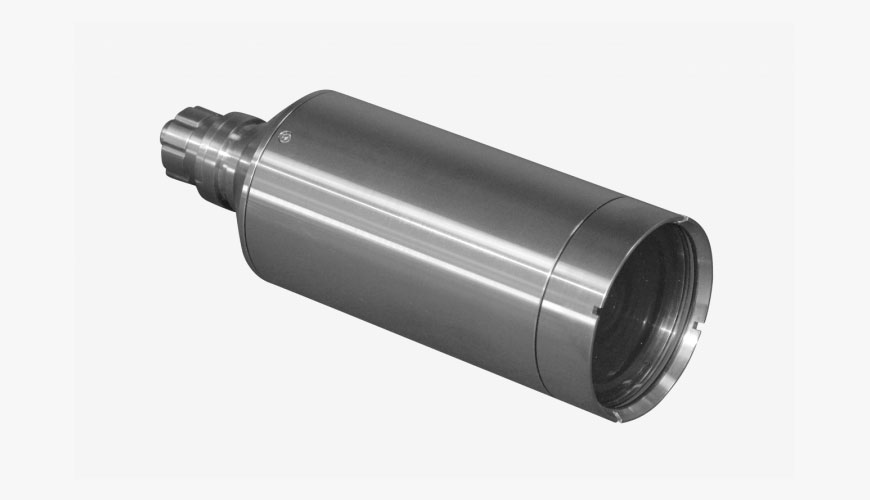

The Z71 is a radiation hardened HD zoom color camera. The camera features a low light sensitivity high resolution image with excellent color reproduction.
Features
APPLICATIONS
- Designed for underwater use in high radiation areas.
- Suitable camera when pan&tilt movements are not necessary.
BENEFITS
- Auto-focus and auto-iris
- Powerful optical zoom
- Easy maintenance
- Low light sensitivity
- Compatible with pan&tilt unit H85DC
Specifications
Diameter | 84 mm (3,31") |
Length | 209 mm (8,2") |
Weight | 1,2 kg (2,6 lbs) |
Housing material | Stainless steel EN 1.4301 |
Radiation tolerance (dose rate) | 500 Gy/h (50 000 rad/h) |
Radiation tolerance (total dose) | 1 300 Gy (130 000 rad) |
Maximum temperature | 50°C (short-term up to 70°C) 122°F (short-term up to 158°F) |
Water tightness | min 3,5 bar (50 psi) |
Zoom | x10-x18 optical x4-x10 digital (depending on module choice) |
Minimum distance to object | 5 mm (0,20") |
SD horizontal angle of view | ~50° (wide end), ~5° (tele end) |
Resolution SD version | 470-720 TV-lines |
Resolution HD version | 720p |
