UNDERWATER MONOCHROME TUBE CAMERA

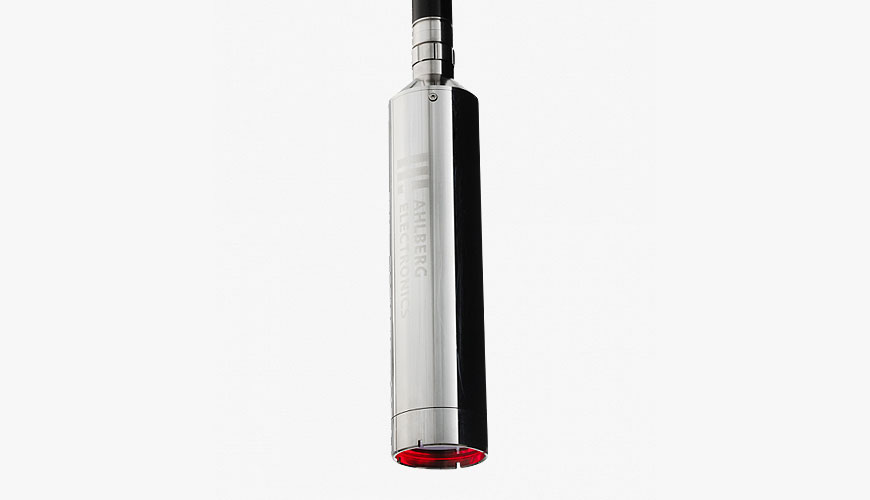

The N66HR is a monochrome tube B/W camera designed for inspections in areas with very high radiation.
Features
APPLICATIONS
- For special inspection in high radiation areas with difficulties of access.
- For surveillance during fuel assembly examinations.
- Ideal for inspections of high radiation parts of reactor vessels and internal parts in reactors.
- Can be controlled by Ahlberg CCU200 and PIS200 control units.
BENEFITS
- Temperature tolerant
- Made for both for underwater and CCTV usage
- Available with Chalnicon or Vidicon camera tube
Specifications
| Diameter | 65 mm, 85mm with x6 and x10 zoom lens |
| Length with zoom lens | 320 mm |
| Weight | 1 kg, 2 kg with zoom lens (2.2 lbs, 4.4 lbs) |
| Housing material | Stainless steel EN 1.4301/EN 1.4436, AISI 304/AISI 316 |
| Radiation tolerance (dose rate) | 10 000 Gy/h (1 000 000 rad/h) |
| Radiation tolerance (total dose) | 500 000 Gy (50 000 000 rad) |
| Radiation tolerance neutrons | Very high |
| Maximum temperature | 50°C (122°F) |
| Water tightness | min 3,5 bar (50 psi) |
| Zoom | x3, x6 or x10 optical available as option |
| Minimum distance to object | from 50 mm |
| Resolution SD version | up to 700 TV-lines |
| Lights | Internal LED lights |
