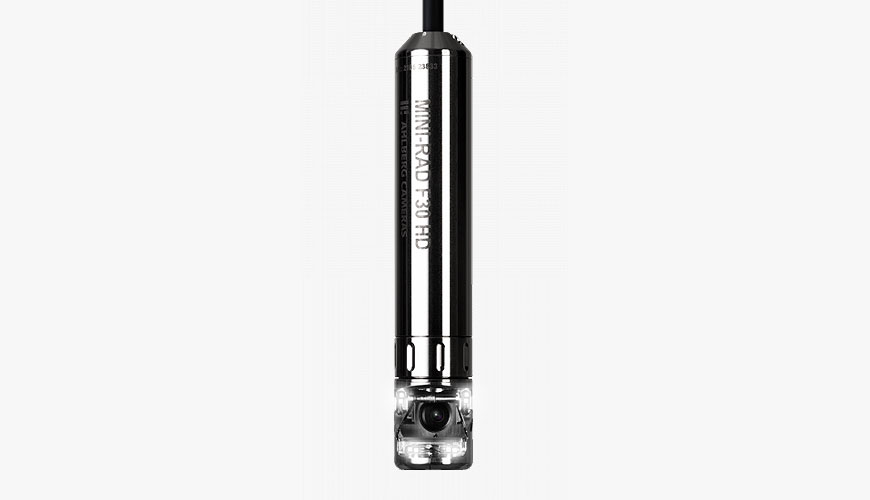

HIGH RADIATION TOLERANT MINI HD CAMERA WITH MOTORIZED FOCUS AND MIRROR
MINI-RAD F30 HD M is a compact high radiation tolerant color camera with motorized focus. The mirror attachement enables inspection inside tubes and other narrow spaces.
Features
APPLICATIONS
- Suitable for placement on an actuator or tool where it is used for inspection and monitoring in confined spaces.
- Controlled by CCU50 which controls camera on/off and manual adjustment of the lights.
BENEFITS
- Small size
- Very radiation tolerant
- Motorized focus
- The lights in the internal LED-ring can operate underwater as well as in air
- 2 channels for individual LED light control
Specifications
| Diameter | 30 mm (1,18") |
| Length | 166 mm (6,5") |
| Weight | 400 g (0,9 lbs) |
| Housing material | Stainless steel |
| Radiation tolerance (dose rate) | 1 000 Gy/h (100 000 rad/h) |
| Radiation tolerance (total dose) | 50 000 Gy (5 000 000 rad) |
| Maximum temperature | 50°C, 122°F |
| Water tightness | min 3,5 bar (50 psi) |
| Focal length | 4,0 mm |
| Field of view in air | H52° x V31° |
| Field of view in water | H39° x V23° |
| Focal length | 6,0 mm |
| Field of view in air | H34° x V21° |
| Field of view in water | H26° x V16° |
| Focal length | 8,0 mm |
| Field of view in air | H26° x V16° |
| Field of view in water | H20° x V12° |
| Focal length | 5,0 mm |
| Field of view in air | H41° x V25° |
| Field of view in water | H30° x V18° |
