CCTV LED 1

Written by Thermal Systems

COMPACT CCTV LED LIGHT

AHLBERG CCTV LED 1

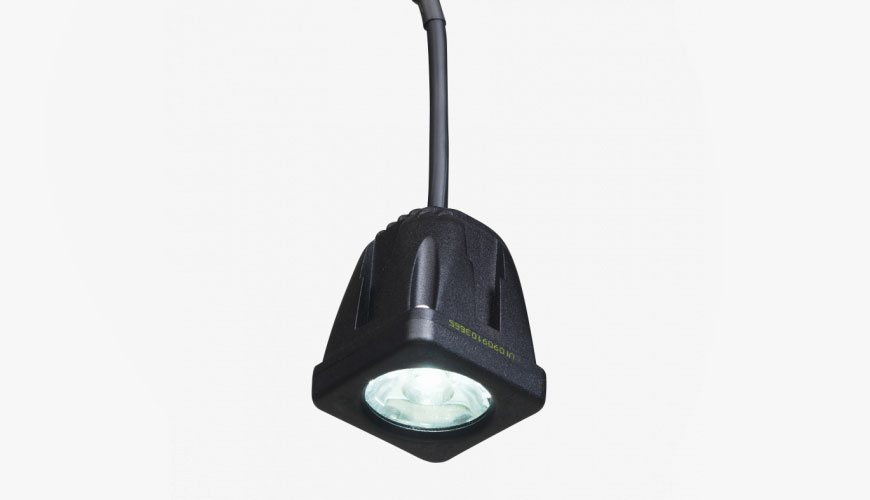

CCTV LED 1 is a compact radiation tolerant CCTV LED light unit.


Features

APPLICATIONS

  • For nuclear CCTV applications where the objects are close to the camera, up to ~3m.

BENEFITS

  • Small-size
  • 50 000 hours lifetime
  • Its cable is halogen free and flame retardant

Specifications

Dimensions (L*W*H) 72x52x65 mm (2,8"x2,1x2,6)
Weight 0,3 kg (0,7 lbs)
Housing material Painted Aluminum
Maximum temperature 50°C (122°F)
Protection class IP65
Typical luminous flux 1 000 lumen
Power consumption 10 Watt
Life time 50 000 h
Radiation tolerance (total dose) 2 000 Gy (200 000 rad)
